96% Silica Content High Silica Fabric With Excellent Break Strength And Improved Abrasion Resistance

Changshu Jiangnan Glass Fiber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

96% Silica Content High Silica Fabric With Excellent Break Strength And Improved Abrasion Resistance

  • 1
  • 2

Brand Name : Jiangnan

Model Number : High Silica Cloth

Certification : ISO 9001 2015, BS EN 1869

Place of Origin : Jiangsu-China

MOQ : 100 Meters

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 8000m2 Per Day

Delivery Time : 10~15days after got payment

Packaging Details : Woven bag or Carton Box

Product name : High Silica fiberglass fabrics

Thickness : 1.30mm

Width : 36 Inches

Weight : 620g

SiO2 Content : ≥96%

Yarn Type : E-glass

Color : White/Brown

Standing temperature : 1000C

Contact Now

96% Silica Content High Silica Fabric With Excellent Break Strength and Improved Abrasion Resistance

1. Description:

  • High Silica Cloth has more than 96% silica with excellent break strength and improved abrasion resistance.
  • High Silica Cloth has been specially developed for applications to protect against extreme temperature environments.
  • Silica cloth has excellent thermal insulation characteristics over an extensive temperature range and doesn’t melt until the temperature exceeds 3000°F or 1600°C.
  • They also have excellent chemical resistance and electrical insulation properties.
  • High-Temperature Silica Cloth has widespread applications and is used in various industries like metallurgy, building rockets, building aircraft, building ships, the car industry, machine building, and even atomic energy.
  • The High Silica Cloth, has over 96% Amorphous Silica. The fabric does not contain asbestos or ceramic and is flexible with the ability to withstand high temperatures.
  • Chemical resistant
  • Abrasion resistant
  • Upper-temperature resistance of up to 1600°C
  • Continuous protection of up to 1000°C
  • High insulation value
  • Flexible and non-hazardous
  • Coated Silica fabrics offer protection up to 1100° C

2. Technique Data Sheets for High Silica Cloth

Item

Technical Requirement

Width(mm) 920±10
Weave Style 12HS Satin
Warp Counts (ends/cm) ≥18
Fill Count ≥13

Warp Breaking Strength(N/Inch)

≥ 1200

Weft Breaking Strength(N/Inch)

≥ 800
Weight (g/m2) 1100 ± 50
Length (m) 50.0
Thickness 1.3 ± 0.1
Silica Content % ≥ 96
Linear Shrinkage% 5-10
Working Temperature 1200 ℃
Coating Pu 0.8-1%

3. Features:

High resistance to temperatures up to 1600 ° C.

Thermal Shrinkage is less

Electrical conductivity is low

4. Application:

Welding and Fire Blanket

Thermal and Electrical Insulation

Gasketing

Expansion Joints

Heat shields

Containment

Door Seals

The inner lining of switch boxes

Hose and Cable Protection

Protective Garments

Heat and Flange Shielding

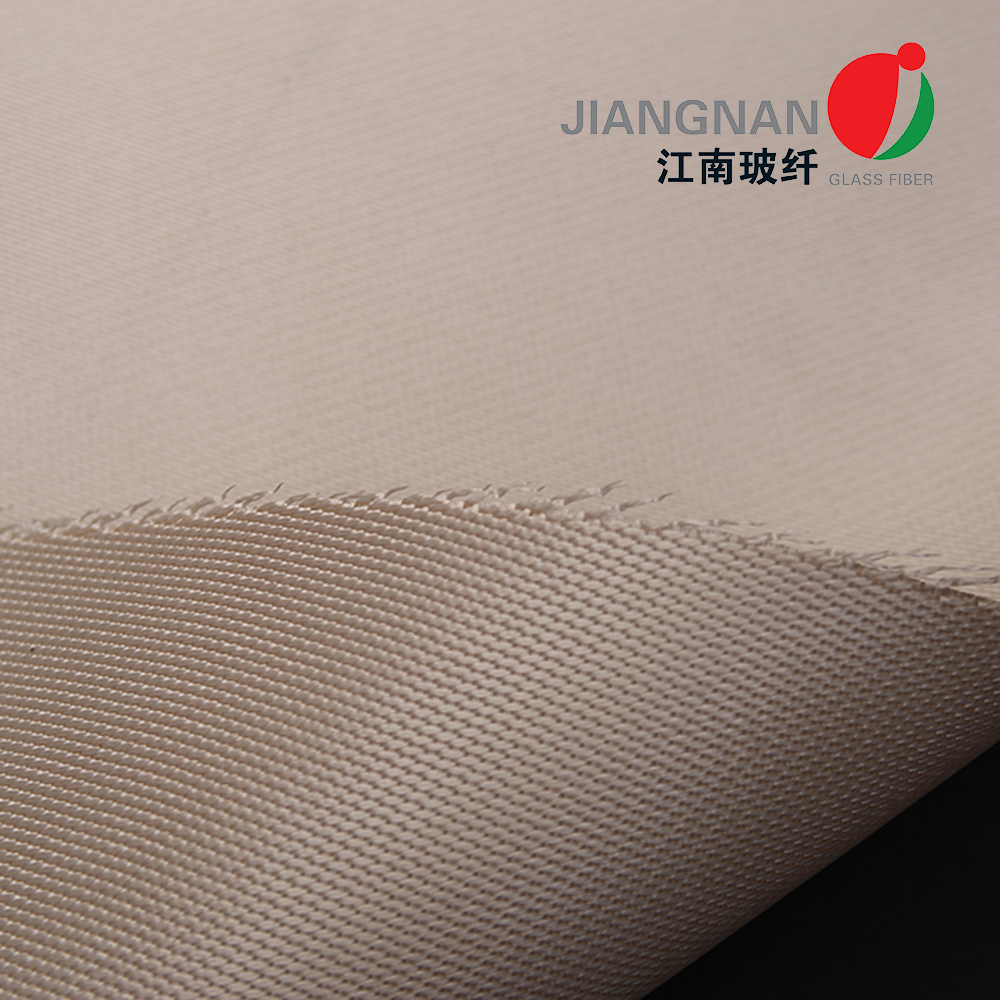

5. Product Detail Images

96% Silica Content High Silica Fabric With Excellent Break Strength And Improved Abrasion Resistance

6. More Silica Cloth Specification

Product Name Model Width mm Working Temperature℃ Weight g/㎡ SiO2 Content
High Silica JNHS-300-92 92 1000 300 >96%
High Silica JNHS-450-92 92 1000 450 >96%
High Silica JNHS-600-92 92 1000 612 >96%
High Silica JNHS-600-100 100 1000 612 >96%
High Silica JNHS-600-130 130 1000 612 >96%
High Silica JNHS-880-92 92 1000 880 >96%
High Silica JNHS-880-100 100 1000 880 >96%
High Silica JNHS-1100-92 92 1000 1100 >96%
High Silica JNHS-1100-100 100 1000 1100 >96%
Silica Cloth JNSC-450-100 100 800 600 70%±5%
Silica Cloth JNSC-600-92 92 800 600 70%±5%
Silica Cloth JNSC-600-100 100 800 700 70%±5%
Silica Cloth JNSC-600-152 152 800 700 70%±5%
Silica Cloth JNSC-1100-92 92 800 1100 70%±5%
Silica Cloth JNSC-1200-100 100 800 1200 70%±5%
Silica Cloth JNSC-1200-152 152 800 1200 70%±5%
High Silica Texturized Cloth JNSCT-42-92 92 1000 1450 >96%
High Silica Texturized Cloth JNSCT-42-100 100 1000 1450 >96%
